Product Highlights: Segmented Clip-On Series

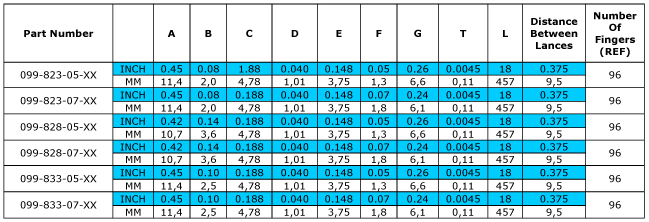

P/N: 099-823-05-20, 099-823-07-20, 099-828-05-20, 099-828-07-20, 099-833-05-20 & 099-833-07-20

Ideal for most clip-on applications this series of parts combines high-quality performance with cost effective prices. Due to a high-speed method of production, these parts are offered in longer lengths for lower prices. Another added feature is that these parts are segmented after every fourth finger, allowing them to be easily cut into increments of 0.75 inches long. Manufactured in two mounting sizes, they can be mounted to flanges ranging from 0.030 to 0.065 thick.

For additional information, a catalog or samples, please contact our customer service department at 1.973.366.0080 or sales@omegashielding.com. In the USA call toll free at 1.800.828.5784. A Customer Service Representative is waiting to assist you.
