clip on Series

bi directional clip on Series

099-440-07
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.33 (in) 8.4 (mm) 0.01 (in) 0.3 (mm) 0.07 (in) 1.8 (mm) 0.50 (in) 12.7 (mm) 0.04 (in) 1.02 (mm) 0.21 (in) 5.33 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"C\" Style (every 2 fingers / 32 per strip) 0.4 (in) 10.2 (mm) 0.09 (in) 2.3 (mm) 16 (in) 406.4 (mm) 0.003 (in) 0.076 (mm) 0.13 (in) 3.3 (mm) 0.07 (in) (mm) 0.035-0.065 (in) 0.89-1.65 (mm)
099-441-07
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.33 (in) 8.4 (mm) 0.01 (in) 0.3 (mm) 0.09 (in) 2.3 (mm) 0.50 (in) 12.7 (mm) 0.04 (in) 1.02 (mm) 0.21 (in) 5.33 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"C\" Style (every 2 fingers / 32 per strip) 0.43 (in) 10.9 (mm) 0.12 (in) 3.0 (mm) 16 (in) 406.4 (mm) 0.003 (in) 0.076 (mm) 0.12 (in) 3.0 (mm) 0.07 (in) 1.8 (mm) 0.035-0.065 (in) 0.89-1.65 (mm)

clip on sub Series

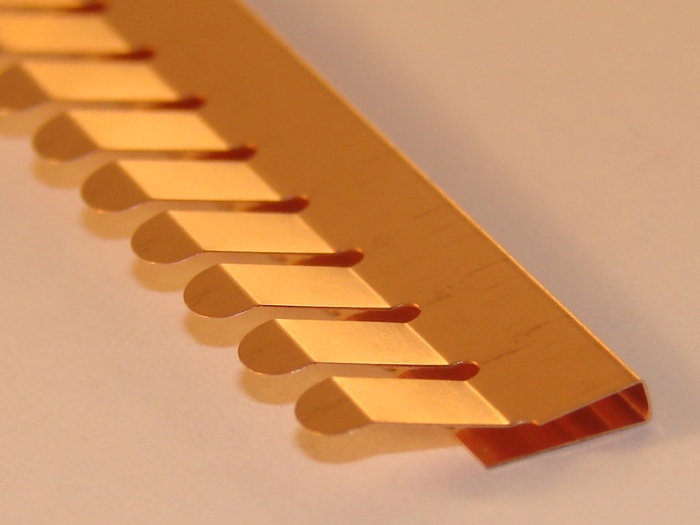

099-830-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.47 (in) 11.9 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.77 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.45 (in) 11.4 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-830-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.47 (in) 11.9 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.77 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.45 (in) 11.4 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-830-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.47 (in) 11.9 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.77 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.45 (in) 11.4 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-831-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.47 (in) 11.9 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.77 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"V" Style (every 5 fingers / 17 per strip) 0.45 (in) 11.4 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-831-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.47 (in) 11.9 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.77 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"V" Style (every 5 fingers / 17 per strip) 0.45 (in) 11.4 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-831-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.47 (in) 11.9 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.77 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"V" Style (every 5 fingers / 17 per strip) 0.45 (in) 11.4 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-833-05
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
96 0.47 (in) 11.9 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.1875 (in) 4.76 (mm) 0.04 (in) 1.02 (mm) 0.1475 (in) 3.747 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 2 fingers / 48 per strip) 0.45 (in) 11.4 (mm) 0.1 (in) 2.5 (mm) 18 (in) 457.2 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.05 (in) 1.3 (mm) 0.025-0.045 (in) 0.64-1.14 (mm)
099-833-07
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
96 0.47 (in) 11.9 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.1875 (in) 4.76 (mm) 0.04 (in) 1.02 (mm) 0.1475 (in) 3.747 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 2 fingers / 48 per strip) 0.45 (in) 11.4 (mm) 0.1 (in) 2.5 (mm) 18 (in) 457.2 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.07 (in) 1.8 (mm) 0.035-0.065 (in) 0.89-1.65 (mm)

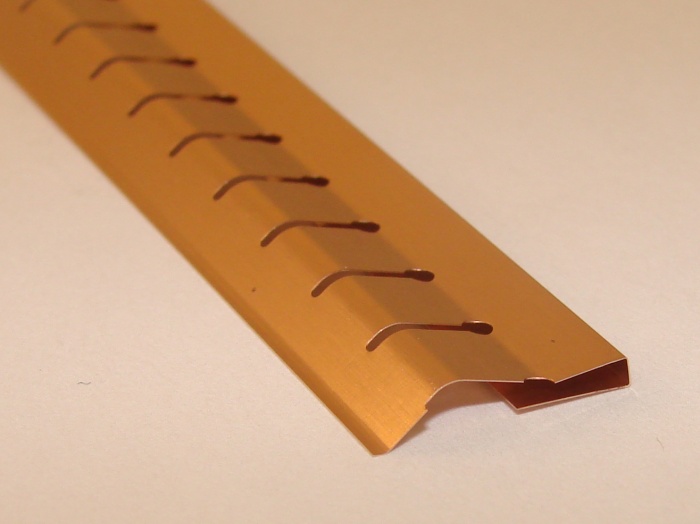

099-850-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
65 0.58 (in) 14.7 (mm) 0.03 (in) 0.8 (mm) 0.05 (in) 1.3 (mm) 0.249 (in) 6.32 (mm) 0.03 (in) 0.76 (mm) 0.219 (in) 5.56 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.56 (in) 14.2 (mm) 0.07 (in) 1.8 (mm) 16.19 (in) 411.2 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-850-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
65 0.58 (in) 14.7 (mm) 0.03 (in) 0.8 (mm) 0.05 (in) 1.3 (mm) 0.249 (in) 6.32 (mm) 0.03 (in) 0.76 (mm) 0.219 (in) 5.56 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.56 (in) 14.2 (mm) 0.07 (in) 1.8 (mm) 16.19 (in) 411.2 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-850-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
65 0.58 (in) 14.7 (mm) 0.03 (in) 0.8 (mm) 0.05 (in) 1.3 (mm) 0.249 (in) 6.32 (mm) 0.03 (in) 0.76 (mm) 0.219 (in) 5.56 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.56 (in) 14.2 (mm) 0.07 (in) 1.8 (mm) 16.19 (in) 411.2 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)

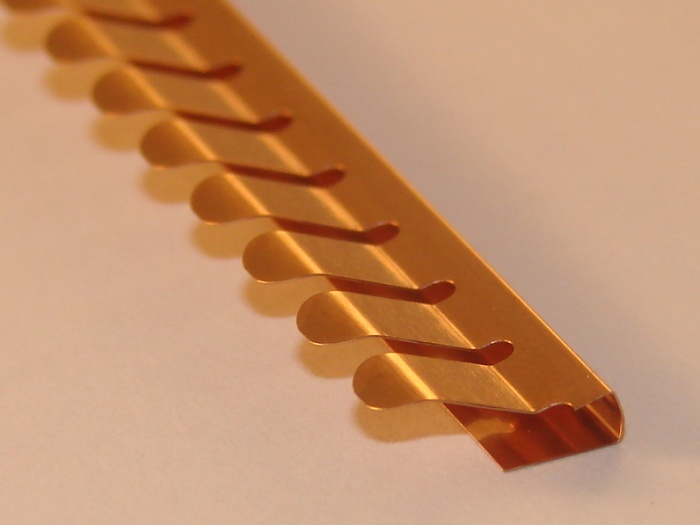

099-870-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.32 (in) 8.1 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.77 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.3 (in) 7.6 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.0038 (in) 0.097 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-870-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.32 (in) 8.1 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.77 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.3 (in) 7.6 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.0038 (in) 0.097 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-870-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.32 (in) 8.1 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.77 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.3 (in) 7.6 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.0038 (in) 0.097 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-871-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.32 (in) 8.1 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.77 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"V\" Style (every 5 fingers / 17 per strip) 0.3 (in) 7.6 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.0038 (in) 0.097 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-871-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.32 (in) 8.1 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.77 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"V" Style (every 5 fingers / 17 per strip) 0.3 (in) 7.6 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.0038 (in) 0.097 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-871-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.32 (in) 8.1 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.77 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"V" Style (every 5 fingers / 17 per strip) 0.3 (in) 7.6 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.0038 (in) 0.097 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-872-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.32 (in) 8.1 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.77 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 5 fingers / 17 per strip) 0.3 (in) 7.6 (mm) 0.1 (in) 2.8 (mm) 15.98 (in) 405.9 (mm) 0.0038 (in) 0.097 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)

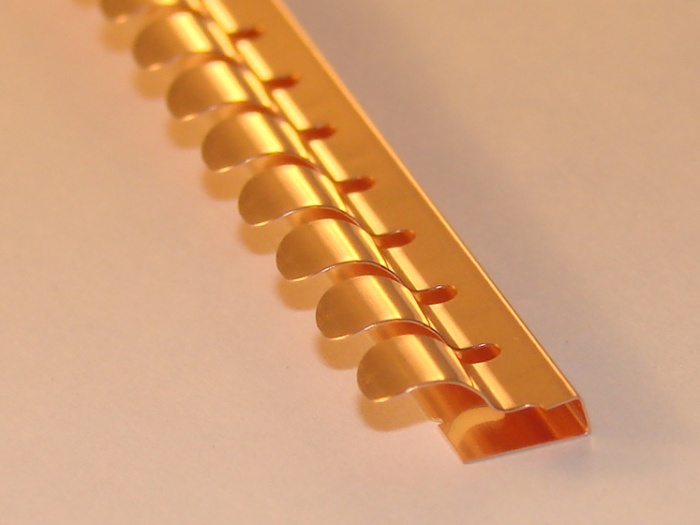

099-810-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.32 (in) 8.1 (mm) 0.04 (in) 1 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.3 (in) 7.6 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-810-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.32 (in) 8.1 (mm) 0.04 (in) 1 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.3 (in) 7.6 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-810-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.32 (in) 8.1 (mm) 0.04 (in) 1 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.3 (in) 7.6 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-811-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.32 (in) 8.1 (mm) 0.04 (in) 1 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"V\" Style ( every 5 fingers / 17 per strip) 0.3 (in) 7.6 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-811-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.32 (in) 8.1 (mm) 0.04 (in) 1 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"V\" Style (every 5 fingers / 17 per strip) 0.3 (in) 7.6 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-811-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.32 (in) 8.1 (mm) 0.04 (in) 1 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"V\" Style (every 5 fingers / 17 per strip) 0.3 (in) 7.6 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-820-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.44 (in) 11.2 (mm) 0.04 (in) 1 (mm) 0.06 (in) 1.5 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.42 (in) 10.7 (mm) 0.08 (in) 2 (mm) 15.98 (in) 405.9 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-820-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.44 (in) 11.2 (mm) 0.04 (in) 1 (mm) 0.06 (in) 1.5 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.42 (in) 10.7 (mm) 0.08 (in) 2 (mm) 15.98 (in) 405.9 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-820-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.44 (in) 11.2 (mm) 0.04 (in) 1 (mm) 0.06 (in) 1.5 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.42 (in) 10.7 (mm) 0.08 (in) 2 (mm) 15.98 (in) 405.9 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-821-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.44 (in) 11.2 (mm) 0.04 (in) 1 (mm) 0.06 (in) 1.5 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"V\" Style (every 5 fingers / 17 per strip) 0.42 (in) 10.7 (mm) 0.08 (in) 2 (mm) 15.98 (in) 405.9 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-821-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.44 (in) 11.2 (mm) 0.04 (in) 1 (mm) 0.06 (in) 1.5 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"V\" Style (every 5 fingers / 17 per strip) 0.42 (in) 10.7 (mm) 0.08 (in) 2 (mm) 15.98 (in) 405.9 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-821-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.44 (in) 11.2 (mm) 0.04 (in) 1 (mm) 0.06 (in) 1.5 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"V\" Style (every 5 fingers / 17 per strip) 0.42 (in) 10.7 (mm) 0.08 (in) 2 (mm) 15.98 (in) 405.9 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-825-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.44 (in) 11.2 (mm) 0.04 (in) 1 (mm) 0.11 (in) 2.8 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.42 (in) 10.7 (mm) 0.14 (in) 3.6 (mm) 15.98 (in) 405.9 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-825-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.44 (in) 11.2 (mm) 0.04 (in) 1 (mm) 0.11 (in) 2.8 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.42 (in) 10.7 (mm) 0.14 (in) 3.6 (mm) 15.98 (in) 405.9 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-825-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.44 (in) 11.2 (mm) 0.04 (in) 1 (mm) 0.11 (in) 2.8 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.42 (in) 10.7 (mm) 0.14 (in) 3.6 (mm) 15.98 (in) 405.9 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-826-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.44 (in) 11.2 (mm) 0.04 (in) 1 (mm) 0.11 (in) 2.8 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"V\" Style (every 5 fingers / 17 per strip) 0.42 (in) 10.7 (mm) 0.14 (in) 3.6 (mm) 15.98 (in) 405.9 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-826-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.44 (in) 11.2 (mm) 0.04 (in) 1 (mm) 0.11 (in) 2.8 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"V\" Style (every 5 fingers / 17 per strip) 0.42 (in) 10.7 (mm) 0.14 (in) 3.6 (mm) 15.98 (in) 405.9 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-826-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.44 (in) 11.2 (mm) 0.04 (in) 1 (mm) 0.11 (in) 2.8 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"V\" Style (every 5 fingers / 17 per strip) 0.42 (in) 10.7 (mm) 0.14 (in) 3.6 (mm) 15.98 (in) 405.9 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-823-05
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
96 0.47 (in) 11.9 (mm) 0.04 (in) 1 (mm) 0.06 (in) 1.5 (mm) 0.1875 (in) 4.76 (mm) 0.04 (in) 1.02 (mm) 0.1475 (in) 3.75 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 2 fingers / 48 per strip) 0.45 (in) 11.4 (mm) 0.08 (in) 2 (mm) 18 (in) 457.2 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.05 (in) 1.3 (mm) 0.025-0.045 (in) 0.64-1.14 (mm)
099-823-07
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
96 0.47 (in) 11.9 (mm) 0.04 (in) 1 (mm) 0.06 (in) 1.5 (mm) 0.1875 (in) 4.76 (mm) 0.04 (in) 1.02 (mm) 0.1475 (in) 3.75 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 2 fingers / 48 per strip) 0.45 (in) 11.4 (mm) 0.08 (in) 2 (mm) 18 (in) 457.2 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.07 (in) 1.8 (mm) 0.035-0.065 (in) 0.89-1.65 (mm)
099-828-05
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
96 0.44 (in) 11.2 (mm) 0.04 (in) 1 (mm) 0.11 (in) 2.8 (mm) 0.1875 (in) 4.76 (mm) 0.04 (in) 1.02 (mm) 0.1475 (in) 3.75 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 2 fingers / 48 per strip) 0.42 (in) 10.7 (mm) 0.14 (in) 3.6 (mm) 18 (in) 457.2 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.05 (in) 1.3 (mm) 0.025-0.045 (in) 0.64-1.14 (mm)
099-828-07
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
96 0.44 (in) 11.2 (mm) 0.04 (in) 1 (mm) 0.11 (in) 2.8 (mm) 0.1875 (in) 4.76 (mm) 0.04 (in) 1.02 (mm) 0.1475 (in) 3.75 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 2 fingers / 48 per strip) 0.42 (in) 10.7 (mm) 0.14 (in) 3.6 (mm) 18 (in) 457.2 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.07 (in) 1.8 (mm) 0.035-0.065 (in) 0.89-1.65 (mm)
099-860-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.62 (in) 15.7 (mm) 0.06 (in) 1.5 (mm) 0.16 (in) 4.1 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.6 (in) 15.2 (mm) 0.21 (in) 5.3 (mm) 15.98 (in) 405.9 (mm) 0.004 (in) 0.102 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-860-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.62 (in) 15.7 (mm) 0.06 (in) 1.5 (mm) 0.16 (in) 4.1 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.6 (in) 15.2 (mm) 0.21 (in) 5.3 (mm) 15.98 (in) 405.9 (mm) 0.004 (in) 0.102 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-860-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.62 (in) 15.7 (mm) 0.06 (in) 1.5 (mm) 0.16 (in) 4.1 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.6 (in) 15.2 (mm) 0.21 (in) 5.3 (mm) 15.98 (in) 405.9 (mm) 0.004 (in) 0.102 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-861-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.62 (in) 15.7 (mm) 0.06 (in) 1.5 (mm) 0.16 (in) 4.1 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"V" Style (every 5 fingers / 17 per strip) 0.6 (in) 15.2 (mm) 0.21 (in) 5.3 (mm) 15.98 (in) 405.9 (mm) 0.004 (in) 0.102 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-861-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.62 (in) 15.7 (mm) 0.06 (in) 1.5 (mm) 0.16 (in) 4.1 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"V\" Style (every 5 fingers / 17 per strip) 0.6 (in) 15.2 (mm) 0.21 (in) 5.3 (mm) 15.98 (in) 405.9 (mm) 0.004 (in) 0.102 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-861-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.62 (in) 15.7 (mm) 0.06 (in) 1.5 (mm) 0.16 (in) 4.1 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"V\" Style (every 5 fingers / 17 per strip) 0.6 (in) 15.2 (mm) 0.21 (in) 5.3 (mm) 15.98 (in) 405.9 (mm) 0.004 (in) 0.102 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-866-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.62 (in) 15.7 (mm) 0.08 (in) 2 (mm) 0.21 (in) 5.3 (mm) 0.188 (in) 4.78 (mm) 0.047 (in) 1.19 (mm) 0.141 (in) 3.58 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"V" Style (every 5 fingers / 17 per strip) 0.54 (in) 13.7 (mm) 0.28 (in) 7.1 (mm) 15.98 (in) 405.9 (mm) 0.004 (in) 0.102 (mm) n/a (in) n/a (mm) 0.08 (in) 2.0 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)

fold over clip on Series

099-702-07
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.82 (in) 20.8 (mm) 0.06 (in) 1.5 (mm) 0.17 (in) 4.3 (mm) 0.375 (in) 9.53 (mm) 0.032 (in) 0.81 (mm) 0.343 (in) 8.71 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"V" Style (every finger / 64 per strip) 0.8 (in) 20.3 (mm) 0.23 (in) 5.8 (mm) 24 (in) 609.6 (mm) 0.0038 (in) 0,097 (mm) n/a (in) n/a (mm) 0.07 (in) 1.8 (mm) 0.035-0.065 (in) 0.89-1.65 (mm)
099-722-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.62 (in) 15.7 (mm) 0.06 (in) 1.5 (mm) 0.11 (in) 2.8 (mm) 0.25 (in) 6.35 (mm) 0.022 (in) 0.56 (mm) 0.228 (in) 5.79 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"V" Style (every finger / 64 per strip) 0.6 (in) 15.2 (mm) 0.15 (in) 3.8 (mm) 16 (in) 406.4 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)

hi deflection clip on Series

099-840-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
43 1.28 (in) 32.5 (mm) 0.06 (in) 1.5 (mm) 0.2 (in) 5.1 (mm) 0.375 (in) 9.53 (mm) 0.04 (in) 1.02 (mm) 0.335 (in) 8.51 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 1.1 (in) 27.9 (mm) 0.26 (in) 6.6 (mm) 16.13 (in) 409.6 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-840-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
43 1.28 (in) 32.5 (mm) 0.06 (in) 1.5 (mm) 0.2 (in) 5.1 (mm) 0.375 (in) 9.53 (mm) 0.04 (in) 1.02 (mm) 0.335 (in) 8.51 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 1.1 (in) 27.9 (mm) 0.26 (in) 6.6 (mm) 16.13 (in) 409.6 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-840-12
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
43 1.28 (in) 32.5 (mm) 0.06 (in) 1.5 (mm) 0.2 (in) 5.1 (mm) 0.375 (in) 9.53 (mm) 0.04 (in) 1.02 (mm) 0.335 (in) 8.51 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 1.1 (in) 27.9 (mm) 0.26 (in) 6.6 (mm) 16.13 (in) 409.6 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.12 (in) 3 (mm) 0.075-0.115 (in) 1.91-2.92 (mm)
099-841-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
43 1.28 (in) 32.5 (mm) 0.06 (in) 1.5 (mm) 0.2 (in) 5.1 (mm) 0.375 (in) 9.53 (mm) 0.04 (in) 1.02 (mm) 0.335 (in) 8.51 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 2 fingers (22 per strip) 1.1 (in) 27.9 (mm) 0.26 (in) 6.6 (mm) 16.13 (in) 409.6 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-841-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
43 1.28 (in) 32.5 (mm) 0.06 (in) 1.5 (mm) 0.2 (in) 5.1 (mm) 0.375 (in) 9.53 (mm) 0.04 (in) 1.02 (mm) 0.335 (in) 8.51 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"C\" Style (every 2 fingers / 22 per strip) 1.1 (in) 27.9 (mm) 0.26 (in) 6.6 (mm) 16.13 (in) 409.6 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-841-12
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
43 1.28 (in) 32.5 (mm) 0.06 (in) 1.5 (mm) 0.2 (in) 5.1 (mm) 0.375 (in) 9.53 (mm) 0.04 (in) 1.02 (mm) 0.335 (in) 8.51 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"C\" Style (every 2 fingers / 22 per strip) 1.1 (in) 27.9 (mm) 0.26 (in) 6.6 (mm) 16.13 (in) 409.6 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.12 (in) 3 (mm) 0.075-0.115 (in) 1.91-2.92 (mm)

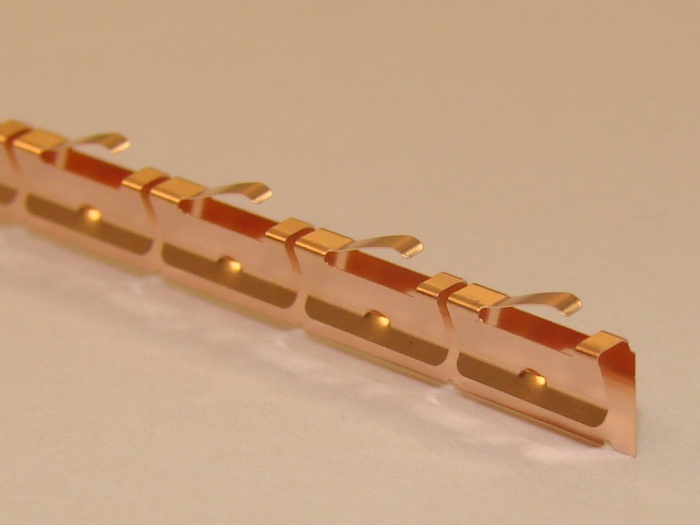

longitudinal clip on Series

099-485-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
40 0.2 (in) 5.1 (mm) 0.01 (in) 0.3 (mm) 0.03 (in) 0.8 (mm) 0.3 (in) 7.62 (mm) 0.02 (in) 0.51 (mm) 0.28 (in) 7.11 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"C\" Style (every finger / 40 per strip) 0.18 (in) 5.6 (mm) 0.04 (in) 1 (mm) 12 (in) 304.8 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)

low profile clip on Series

099-880-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
96 0.27 (in) 6.8 (mm) 0.01 (in) 0.3 (mm) 0.02 (in) 0.5 (mm) 0.25 (in) 6.35 (mm) 0.03 (in) 0.76 (mm) 0.22 (in) 5.59 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.25 (in) 6.4 (mm) 0.07 (in) 0.8 (mm) 24 (in) 609.6 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-881-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
96 0.27 (in) 6.8 (mm) 0.01 (in) 0.3 (mm) 0.02 (in) 0.5 (mm) 0.25 (in) 6.35 (mm) 0.03 (in) 0.76 (mm) 0.22 (in) 5.59 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"C\" Style (every 4 fingers / 24 per strip) 0.25 (in) 6.4 (mm) 0.07 (in) 0.8 (mm) 24 (in) 609.6 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-885-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.3 (in) 7.6 (mm) 0.03 (in) 0.8 (mm) 0.05 (in) 1.3 (mm) 0.25 (in) 6.35 (mm) 0.03 (in) 0.76 (mm) 0.22 (in) 5.59 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.28 (in) 7.1 (mm) 0.10 (in) 1.5 (mm) 16 (in) 406.4 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-886-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.3 (in) 7.6 (mm) 0.03 (in) 0.8 (mm) 0.05 (in) 1.3 (mm) 0.25 (in) 6.35 (mm) 0.03 (in) 0.76 (mm) 0.22 (in) 5.59 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"C\" Style (every 4 fingers / 24 per strip) 0.28 (in) 7.1 (mm) 0.10 (in) 1.5 (mm) 16 (in) 406.4 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)

mini clip on Series

099-800-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
73 0.21 (in) 5.3 (mm) 0.02 (in) 0.5 (mm) 0.04 (in) 1 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.19 (in) 4.8 (mm) 0.05 (in) 1.3 (mm) 12.05 (in) 306.1 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-800-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
73 0.21 (in) 5.3 (mm) 0.02 (in) 0.5 (mm) 0.04 (in) 1 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.19 (in) 4.8 (mm) 0.05 (in) 1.3 (mm) 12.05 (in) 306.1 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-801-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
73 0.21 (in) 5.3 (mm) 0.02 (in) 0.5 (mm) 0.04 (in) 1 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 6 fingers / 12 per strip) 0.19 (in) 4.8 (mm) 0.05 (in) 1.3 (mm) 12.05 (in) 306.1 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-801-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
73 0.21 (in) 5.3 (mm) 0.02 (in) 0.5 (mm) 0.04 (in) 1 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 6 fingers / 12 per strip) 0.19 (in) 4.8 (mm) 0.05 (in) 1.3 (mm) 12.05 (in) 306.1 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-804-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
73 0.21 (in) 5.3 (mm) 0.02 (in) 0.5 (mm) 0.04 (in) 1 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 2 fingers / 36 per strip) 0.19 (in) 4.8 (mm) 0.05 (in) 1.3 (mm) 12.05 (in) 306.1 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)

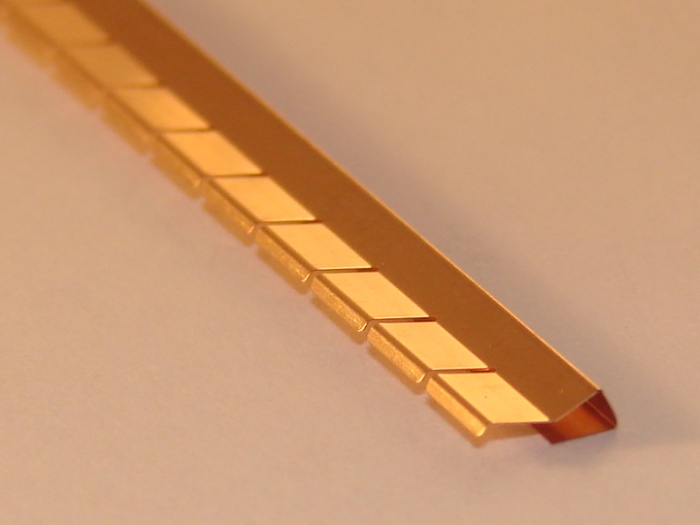

099-802-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
73 0.2 (in) 5.1 (mm) 0.02 (in) 0.5 (mm) 0.04 (in) 1 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.18 (in) 4.6 (mm) 0.05 (in) 1.3 (mm) 12.05 (in) 306.1 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-802-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
73 0.2 (in) 5.1 (mm) 0.02 (in) 0.5 (mm) 0.04 (in) 1 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.18 (in) 4.6 (mm) 0.05 (in) 1.3 (mm) 12.05 (in) 306.1 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-803-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
73 0.2 (in) 5.1 (mm) 0.02 (in) 0.5 (mm) 0.04 (in) 1 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 6 fingers / 12 per strip) 0.18 (in) 4.6 (mm) 0.05 (in) 1.3 (mm) 12.05 (in) 306.1 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-803-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
73 0.2 (in) 5.1 (mm) 0.02 (in) 0.5 (mm) 0.04 (in) 1 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 6 fingers / 12 per strip) 0.18 (in) 4.6 (mm) 0.05 (in) 1.3 (mm) 12.05 (in) 306.1 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)

mini reverse clip on Series

099-855-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
96 0.17 (in) 4.3 (mm) 0.04 (in) 1 (mm) 0.07 (in) 1.8 (mm) 0.125 (in) 3.18 (mm) 0.02 (in) 0.51 (mm) 0.105 (in) 2.67 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.15 (in) 3.8 (mm) 0.09 (in) 2.3 (mm) 12 (in) 304.8 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-855-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
96 0.17 (in) 4.3 (mm) 0.04 (in) 1 (mm) 0.07 (in) 1.8 (mm) 0.125 (in) 3.18 (mm) 0.02 (in) 0.05 (mm) 0.105 (in) 2.67 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.15 (in) 3.8 (mm) 0.09 (in) 2.3 (mm) 12 (in) 304.8 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)

mini twist clip on Series

099-253-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
167 0.17 (in) 4.3 (mm) 0.01 (in) 0.3 (mm) 0.02 (in) 0.5 (mm) 0.096 (in) 2.44 (mm) 0.015 (in) 0.38 (mm) 0.081 (in) 2.06 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.15 (in) 3.8 (mm) 0.03 (in) 0.8 (mm) 16.03 (in) 407.2 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-253-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
167 0.17 (in) 4.3 (mm) 0.01 (in) 0.3 (mm) 0.02 (in) 0.5 (mm) 0.096 (in) 2.44 (mm) 0.015 (in) 0.38 (mm) 0.081 (in) 2.06 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.15 (in) 3.8 (mm) 0.03 (in) 0.8 (mm) 16.03 (in) 407.2 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-254-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
167 0.17 (in) 4.3 (mm) 0.01 (in) 0.3 (mm) 0.02 (in) 0.5 (mm) 0.096 (in) 2.44 (mm) 0.015 (in) 0.38 (mm) 0.081 (in) 2.06 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"C\" Style (every 10 fingers / 17 per strip) 0.15 (in) 3.8 (mm) 0.03 (in) 0.8 (mm) 16.03 (in) 407.2 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-254-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
167 0.17 (in) 4.3 (mm) 0.01 (in) 0.3 (mm) 0.02 (in) 0.5 (mm) 0.096 (in) 2.44 (mm) 0.015 (in) 0.38 (mm) 0.081 (in) 2.06 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"C\" Style (every 10 fingers / 17 per strip) 0.15 (in) 3.8 (mm) 0.03 (in) 0.8 (mm) 16.03 (in) 407.2 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)

no snag clip on Series

099-936-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
96 0.48 (in) 12.2 (mm) 0.06 (in) 1.5 (mm) 0.09 (in) 2.3 (mm) 0.375 (in) 4.763 (mm) 0.02 (in) 0.51 (mm) 0.1675 (in) 4.255 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 2 fingers / 48 per strip) 0.46 (in) 11.7 (mm) 0.12 (in) 3 (mm) 18 (in) 457.2 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)

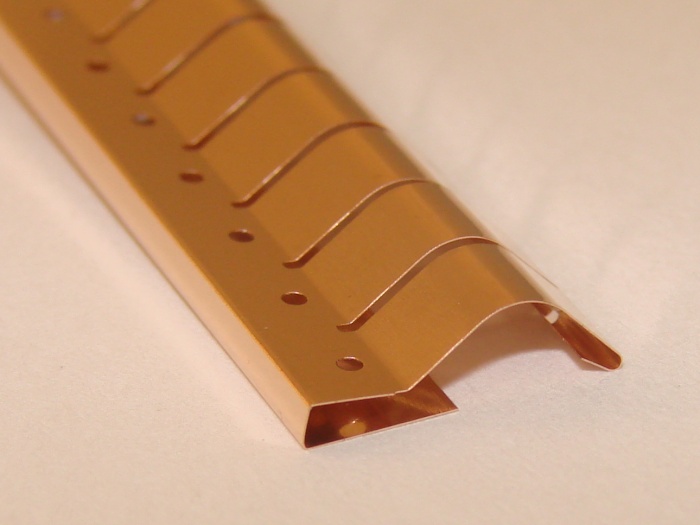

099-945-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
72 0.48 (in) 12.2 (mm) 0.06 (in) 1.5 (mm) 0.09 (in) 2.3 (mm) 0.50 (in) 6.35 (mm) 0.02 (in) 0.51 (mm) 0.23 (in) 5.84 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.46 (in) 11.7 (mm) 0.12 (in) 3 (mm) 18 (in) 457.2 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-945-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
72 0.48 (in) 12.2 (mm) 0.06 (in) 1.5 (mm) 0.09 (in) 2.3 (mm) 0.50 (in) 6.35 (mm) 0.02 (in) 0.51 (mm) 0.23 (in) 5.84 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.46 (in) 11.7 (mm) 0.12 (in) 3 (mm) 18 (in) 457.2 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-945-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
72 0.15 (in) 12.2 (mm) 0.06 (in) 1.5 (mm) 0.09 (in) 2.3 (mm) 0.50 (in) 6.35 (mm) 0.02 (in) 0.51 (mm) 0.23 (in) 5.84 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.46 (in) 11.7 (mm) 0.12 (in) 3 (mm) 18 (in) 457.2 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-946-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
72 0.48 (in) 12.2 (mm) 0.06 (in) 1.5 (mm) 0.09 (in) 2.3 (mm) 0.50 (in) 6.35 (mm) 0.02 (in) 0.51 (mm) 0.23 (in) 5.84 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 2 fingers / 36 per strip) 0.46 (in) 11.7 (mm) 0.12 (in) 3 (mm) 18 (in) 457.2 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-946-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
72 0.48 (in) 12.2 (mm) 0.06 (in) 1.5 (mm) 0.09 (in) 2.3 (mm) 0.50 (in) 6.35 (mm) 0.02 (in) 0.51 (mm) 0.23 (in) 5.84 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 2 fingers / 36 per strip) 0.46 (in) 11.7 (mm) 0.12 (in) 3 (mm) 18 (in) 457.2 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-946-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
72 0.48 (in) 12.2 (mm) 0.06 (in) 1.5 (mm) 0.09 (in) 2.3 (mm) 0.50 (in) 6.35 (mm) 0.02 (in) 0.51 (mm) 0.23 (in) 5.84 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 2 fingers / 36 per strip) 0.46 (in) 11.7 (mm) 0.12 (in) 3 (mm) 18 (in) 457.2 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-966-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
48 0.9 (in) 22.9 (mm) 0.06 (in) 1.5 (mm) 0.18 (in) 4.6 (mm) 0.75 (in) 9.53 (mm) 0.02 (in) 0.51 (mm) 0.355 (in) 9.02 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 2 fingers / 24 per strip) 0.76 (in) 19.3 (mm) 0.25 (in) 6.4 (mm) 18 (in) 457.2 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-965-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
48 0.9 (in) 22.9 (mm) 0.06 (in) 1.5 (mm) 0.18 (in) 4.6 (mm) 0.75 (in) 9.53 (mm) 0.02 (in) 0.51 (mm) 0.355 (in) 9.02 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.76 (in) 19.3 (mm) 0.25 (in) 6.4 (mm) 18 (in) 457.2 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-966-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
48 0.9 (in) 22.9 (mm) 0.06 (in) 1.5 (mm) 0.18 (in) 4.6 (mm) 0.75 (in) 9.53 (mm) 0.02 (in) 0.51 (mm) 0.355 (in) 9.02 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 2 fingers / 24 per strip) 0.76 (in) 19.3 (mm) 0.25 (in) 6.4 (mm) 18 (in) 457.2 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-966-12
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
48 0.9 (in) 22.9 (mm) 0.06 (in) 1.5 (mm) 0.18 (in) 4.6 (mm) 0.75 (in) 9.53 (mm) 0.02 (in) 0.51 (mm) 0.355 (in) 9.02 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 2 fingers / 24 per strip) 0.76 (in) 19.3 (mm) 0.25 (in) 6.4 (mm) 18 (in) 457.2 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.12 (in) 3 (mm) 0.075-0.115 (in) 1.91-2.92 (mm)

reverse clip on Series

099-805-07
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.4 (in) 10.2 (mm) 0.06 (in) 1.5 (mm) 0.15 (in) 3.8 (mm) 0.50 (in) 12.7 (mm) 0.04 (in) 1.02 (mm) 0.21 (in) 5.33 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"C\" Style (every 2 fingers / 32 per strip) 0.38 (in) 9.7 (mm) 0.2 (in) 5.1 (mm) 16 (in) 406.4 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) 0.07 (in) 1.8 (mm) 0.035-0.065 (in) 0.89-1.65 (mm)
099-806-07
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.4 (in) 10.2 (mm) 0.08 (in) 2 (mm) 0.23 (in) 5.8 (mm) 0.50 (in) 12.7 (mm) 0.04 (in) 1.02 (mm) 0.21 (in) 5.33 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 2 fingers / 32 per strip) 0.38 (in) 9.7 (mm) 0.31 (in) 7.9 (mm) 16 (in) 406.4 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) 0.07 (in) 1.8 (mm) 0.035-0.065 (in) 0.89-1.65 (mm)
099-807-07
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.4 (in) 10.2 (mm) 0.07 (in) 1.8 (mm) 0.21 (in) 5.3 (mm) 0.50 (in) 12.7 (mm) 0.04 (in) 1.02 (mm) 0.21 (in) 5.33 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"C\" Style (every 2 fingers / 32 per strip) 0.38 (in) 9.7 (mm) 0.28 (in) 7.1 (mm) 16 (in) 406.4 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) 0.07 (in) 1.8 (mm) 0.035-0.065 (in) 0.89-1.65 (mm)
099-815-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.51 (in) 13 (mm) 0.14 (in) 3.6 (mm) 0.21 (in) 5.3 (mm) 0.188 (in) 4.78 (mm) 0.064 (in) 1.63 (mm) 0.124 (in) 3.15 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.49 (in) 12.4 (mm) 0.28 (in) 7.1 (mm) 15.98 (in) 405.9 (mm) 0.006 (in) 0.152 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-815-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.51 (in) 13 (mm) 0.14 (in) 3.6 (mm) 0.21 (in) 5.3 (mm) 0.188 (in) 4.78 (mm) 0.064 (in) 1.63 (mm) 0.124 (in) 3.15 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.49 (in) 12.4 (mm) 0.28 (in) 7.1 (mm) 15.98 (in) 405.9 (mm) 0.006 (in) 0.152 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-815-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.51 (in) 13 (mm) 0.14 (in) 3.6 (mm) 0.21 (in) 5.3 (mm) 0.188 (in) 4.78 (mm) 0.064 (in) 1.63 (mm) 0.124 (in) 3.15 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.49 (in) 12.4 (mm) 0.28 (in) 7.1 (mm) 15.98 (in) 405.9 (mm) 0.006 (in) 0.152 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-815-12
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.51 (in) 13 (mm) 0.14 (in) 3.6 (mm) 0.21 (in) 5.3 (mm) 0.188 (in) 4.78 (mm) 0.064 (in) 1.63 (mm) 0.124 (in) 3.15 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.49 (in) 12.4 (mm) 0.28 (in) 7.1 (mm) 15.98 (in) 405.9 (mm) 0.006 (in) 0.152 (mm) n/a (in) n/a (mm) 0.12 (in) 3 (mm) 0.075-0.115 (in) 1.91-2.92 (mm)
099-816-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.51 (in) 13 (mm) 0.14 (in) 3.6 (mm) 0.21 (in) 5.3 (mm) 0.188 (in) 4.78 (mm) 0.064 (in) 1.63 (mm) 0.124 (in) 3.15 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 3 fingers / 29 per strip) 0.49 (in) 12.4 (mm) 0.28 (in) 7.1 (mm) 16.356 (in) 405.9 (mm) 0.006 (in) 0.152 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-816-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.51 (in) 13 (mm) 0.14 (in) 3.6 (mm) 0.21 (in) 5.3 (mm) 0.188 (in) 4.78 (mm) 0.064 (in) 1.63 (mm) 0.124 (in) 3.15 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 3 fingers / 29 per strip) 0.49 (in) 12.4 (mm) 0.28 (in) 7.1 (mm) 16.356 (in) 405.9 (mm) 0.006 (in) 0.152 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-816-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.51 (in) 13 (mm) 0.14 (in) 3.6 (mm) 0.21 (in) 5.3 (mm) 0.188 (in) 4.78 (mm) 0.064 (in) 1.63 (mm) 0.124 (in) 3.15 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 3 fingers / 29 per strip) 0.49 (in) 12.4 (mm) 0.28 (in) 7.1 (mm) 16.356 (in) 405.9 (mm) 0.006 (in) 0.152 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-816-12
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.51 (in) 13 (mm) 0.14 (in) 3.6 (mm) 0.21 (in) 5.3 (mm) 0.188 (in) 4.78 (mm) 0.064 (in) 1.63 (mm) 0.124 (in) 3.15 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 3 fingers / 29 per strip) 0.49 (in) 12.4 (mm) 0.28 (in) 7.1 (mm) 16.356 (in) 405.9 (mm) 0.006 (in) 0.152 (mm) n/a (in) n/a (mm) 0.12 (in) 3 (mm) 0.075-0.115 (in) 1.91-2.92 (mm)

reverse spherical clip on Series

099-875-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
224 0.38 (in) 9.7 (mm) 0.06 (in) 1.5 (mm) 0.12 (in) 3 (mm) 0.075 (in) 1.91 (mm) 0.025 (in) 0.64 (mm) 0.05 (in) 1.27 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.36 (in) 9.1 (mm) 0.16 (in) 4.1 (mm) 16.8 (in) 426.7 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-875-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
224 0.38 (in) 9.7 (mm) 0.06 (in) 1.5 (mm) 0.12 (in) 3 (mm) 0.075 (in) 1.91 (mm) 0.025 (in) 0.64 (mm) 0.05 (in) 1.27 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.36 (in) 9.1 (mm) 0.16 (in) 4.1 (mm) 16.8 (in) 426.7 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-875-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
224 0.38 (in) 9.7 (mm) 0.06 (in) 1.5 (mm) 0.12 (in) 3 (mm) 0.075 (in) 1.91 (mm) 0.025 (in) 0.64 (mm) 0.05 (in) 1.27 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.36 (in) 9.1 (mm) 0.16 (in) 4.1 (mm) 16.8 (in) 426.7 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-895-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
256 0.26 (in) 6.6 (mm) 0.04 (in) 1 (mm) 0.08 (in) 2 (mm) 0.0625 (in) 1.588 (mm) 0.02 (in) 0.508 (mm) 0.0425 (in) 1.08 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.24 (in) 6.1 (mm) 0.11 (in) 2.8 (mm) 16 (in) 406.4 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-895-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
256 0.26 (in) 6.6 (mm) 0.04 (in) 1 (mm) 0.08 (in) 2 (mm) 0.0625 (in) 1.588 (mm) 0.02 (in) 0.508 (mm) 0.0425 (in) 1.08 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.24 (in) 6.1 (mm) 0.11 (in) 2.8 (mm) 16 (in) 406.4 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)

transverse clip on Series

099-490-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
40 0.2 (in) 5.1 (mm) 0.01 (in) 0.3 (mm) 0.03 (in) 0.8 (mm) 0.3 (in) 7.62 (mm) 0.02 (in) 0.51 (mm) 0.28 (in) 7.11 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"C\" Style (every finger / 40 per strip) 0.18 (in) 5.6 (mm) 0.04 (in) 1 (mm) 12 (in) 304.8 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)

twist clip on Series

099-203-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
97 0.21 (in) 5.3 (mm) 0.01 (in) 0.3 (mm) 0.05 (in) 1.3 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.19 (in) 4.8 (mm) 0.07 (in) 1.8 (mm) 16 (in) 406.4 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-203-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
97 0.21 (in) 5.3 (mm) 0.01 (in) 0.3 (mm) 0.05 (in) 1.3 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.19 (in) 4.8 (mm) 0.07 (in) 1.8 (mm) 16 (in) 406.4 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-203-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
97 0.19 (in) 4.8 (mm) 0.01 (in) 0.3 (mm) 0.05 (in) 1.3 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.17 (in) 4.3 (mm) 0.07 (in) 1.8 (mm) 16 (in) 406.4 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-204-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
97 0.21 (in) 5.3 (mm) 0.01 (in) 0.3 (mm) 0.05 (in) 1.3 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 5 fingers / 19 per strip) 0.19 (in) 4.8 (mm) 0.07 (in) 1.8 (mm) 16 (in) 406.4 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-204-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
97 0.21 (in) 5.3 (mm) 0.01 (in) 0.3 (mm) 0.05 (in) 1.3 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 6 fingers / 16 per strip) 0.19 (in) 4.8 (mm) 0.07 (in) 1.8 (mm) 16 (in) 406.4 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-204-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
97 0.19 (in) 4.8 (mm) 0.01 (in) 0.3 (mm) 0.05 (in) 1.3 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"C\" Style (every 6 fingers / 16 per strip) 0.17 (in) 4.3 (mm) 0.07 (in) 1.8 (mm) 16 (in) 406.4 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-213-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
97 0.27 (in) 6.9 (mm) 0.01 (in) 0.3 (mm) 0.05 (in) 1.3 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.25 (in) 6.4 (mm) 0.07 (in) 1.8 (mm) 16 (in) 406.4 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-213-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
97 0.27 (in) 6.9 (mm) 0.01 (in) 0.3 (mm) 0.05 (in) 1.3 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.25 (in) 6.4 (mm) 0.07 (in) 1.8 (mm) 16 (in) 406.4 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-213-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
97 0.27 (in) 6.9 (mm) 0.01 (in) 0.3 (mm) 0.05 (in) 1.3 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.25 (in) 6.4 (mm) 0.07 (in) 1.8 (mm) 16 (in) 406.4 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-214-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
97 0.27 (in) 6.9 (mm) 0.01 (in) 0.3 (mm) 0.05 (in) 1.3 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 6 fingers / 16 per strip) 0.25 (in) 6.4 (mm) 0.07 (in) 1.8 (mm) 16 (in) 406.4 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-214-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
97 0.27 (in) 6.9 (mm) 0.01 (in) 0.3 (mm) 0.05 (in) 1.3 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 6 fingers / 16 per strip) 0.25 (in) 6.4 (mm) 0.07 (in) 1.8 (mm) 16 (in) 406.4 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-214-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
97 0.27 (in) 6.9 (mm) 0.01 (in) 0.3 (mm) 0.05 (in) 1.3 (mm) 0.165 (in) 4.19 (mm) 0.015 (in) 0.38 (mm) 0.15 (in) 3.81 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"C\" Style (every 6 fingers / 16 per strip) 0.25 (in) 6.4 (mm) 0.07 (in) 1.8 (mm) 16 (in) 406.4 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)

contact Series

flat contact Series

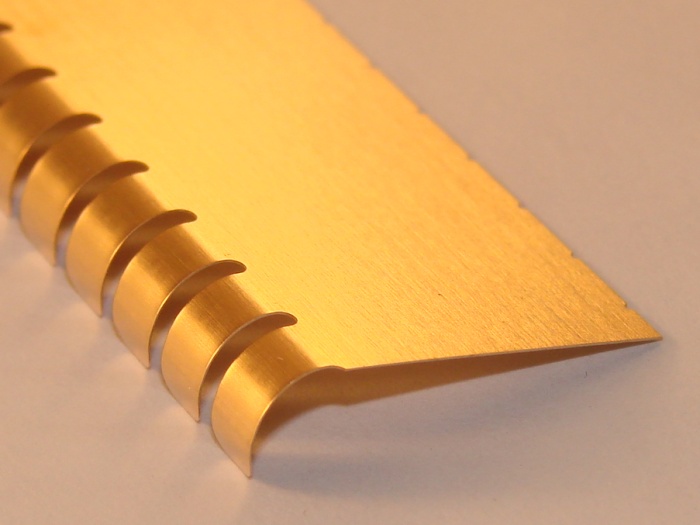

099-610-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.79 (in) 20.1 (mm) (in) (mm) (in) (mm) 0.188 (in) 4.78 (mm) 0.048 (in) 1.22 (mm) 0.14 (in) 3.56 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.77 (in) 19.6 (mm) 0.23 (in) 5.8 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-610-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.79 (in) 20.1 (mm) (in) (mm) (in) (mm) 0.188 (in) 4.78 (mm) 0.048 (in) 1.22 (mm) 0.14 (in) 3.56 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.77 (in) 19.6 (mm) 0.23 (in) 5.8 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)

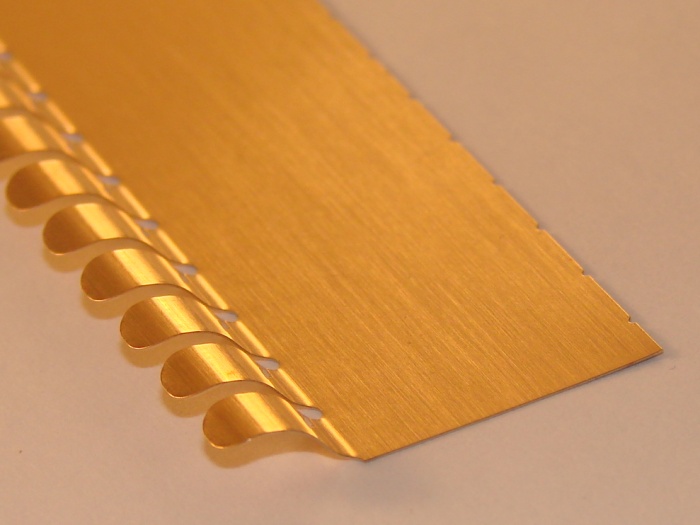

099-612-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.91 (in) 23.1 (mm) 0.13 (in) 3.3 (mm) 0.2 (in) 5.1 (mm) 0.188 (in) 4.78 (mm) 0.048 (in) 1.22 (mm) 0.14 (in) 3.56 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.89 (in) 22.6 (mm) 0.13 (in) 3.3 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-612-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.91 (in) 23.1 (mm) 0.13 (in) 3.3 (mm) 0.2 (in) 5.1 (mm) 0.188 (in) 4.78 (mm) 0.048 (in) 1.22 (mm) 0.14 (in) 3.56 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.89 (in) 22.6 (mm) 0.13 (in) 3.3 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)

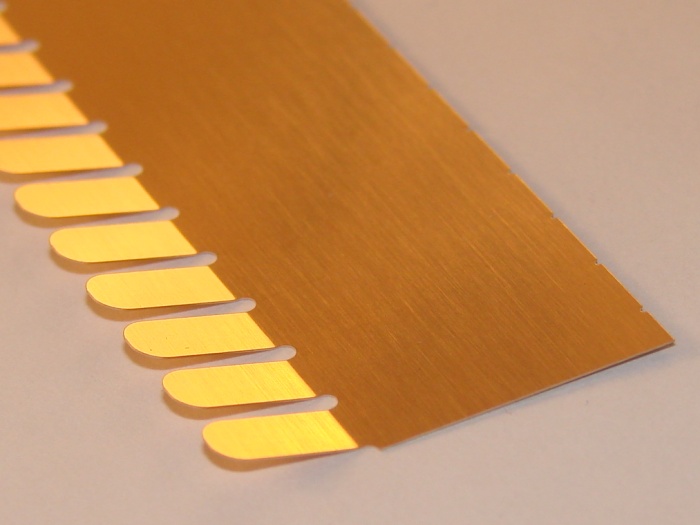

099-613-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.94 (in) 23.9 (mm) 0.04 (in) 1 (mm) 0.07 (in) 1.8 (mm) 0.188 (in) 4.78 (mm) 0.048 (in) 1.22 (mm) 0.14 (in) 3.56 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.92 (in) 23.4 (mm) 0.09 (in) 2.3 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-613-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.94 (in) 23.9 (mm) 0.04 (in) 1 (mm) 0.07 (in) 1.8 (mm) 0.188 (in) 4.78 (mm) 0.048 (in) 1.22 (mm) 0.14 (in) 3.56 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.92 (in) 23.4 (mm) 0.09 (in) 2.3 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-614-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.94 (in) 23.9 (mm) 0.04 (in) 1 (mm) 0.07 (in) 1.8 (mm) 0.188 (in) 4.78 (mm) 0.048 (in) 1.22 (mm) 0.14 (in) 3.56 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.92 (in) 23.4 (mm) 0.09 (in) 2.3 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-614-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.94 (in) 23.9 (mm) 0.04 (in) 1 (mm) 0.07 (in) 1.8 (mm) 0.188 (in) 4.78 (mm) 0.048 (in) 1.22 (mm) 0.14 (in) 3.56 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.92 (in) 23.4 (mm) 0.09 (in) 2.3 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-616-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.91 (in) 23.1 (mm) 0.04 (in) 1 (mm) 0.07 (in) 1.8 (mm) 0.188 (in) 4.78 (mm) 0.048 (in) 1.22 (mm) 0.14 (in) 3.56 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.89 (in) 22.6 (mm) 0.09 (in) 2.3 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-616-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.91 (in) 23.1 (mm) 0.04 (in) 1 (mm) 0.07 (in) 1.8 (mm) 0.188 (in) 4.78 (mm) 0.048 (in) 1.22 (mm) 0.14 (in) 3.56 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.89 (in) 22.6 (mm) 0.09 (in) 2.3 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)

spherical flat contact Series

099-617-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.91 (in) 23.1 (mm) 0.06 (in) 1.5 (mm) 0.09 (in) 2.3 (mm) 0.188 (in) 4.78 (mm) 0.048 (in) 1.22 (mm) 0.14 (in) 3.56 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.89 (in) 22.6 (mm) 0.13 (in) 3.3 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-617-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.91 (in) 23.1 (mm) 0.06 (in) 1.5 (mm) 0.09 (in) 2.3 (mm) 0.188 (in) 4.78 (mm) 0.048 (in) 1.22 (mm) 0.14 (in) 3.56 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.89 (in) 22.6 (mm) 0.13 (in) 3.3 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)

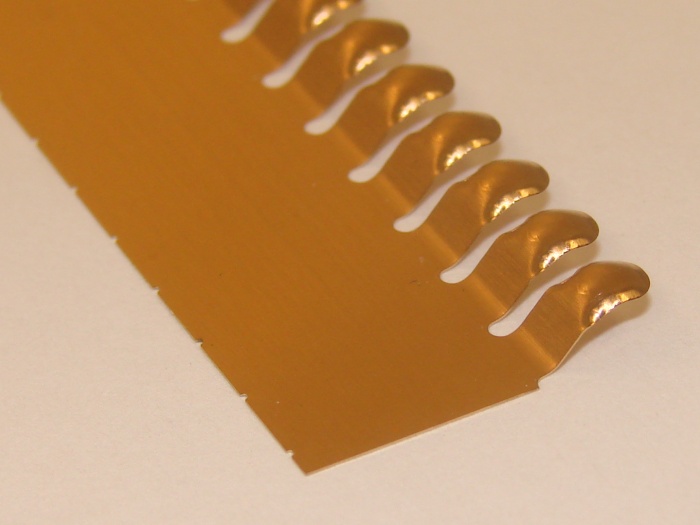

099-618-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.75 (in) 19.1 (mm) 0.06 (in) 1.5 (mm) 0.09 (in) 2.3 (mm) 0.188 (in) 4.78 (mm) 0.048 (in) 1.22 (mm) 0.14 (in) 3.56 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.73 (in) 18.5 (mm) 0.13 (in) 3.3 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-618-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.75 (in) 19.1 (mm) 0.06 (in) 1.5 (mm) 0.09 (in) 2.3 (mm) 0.188 (in) 4.78 (mm) 0.048 (in) 1.22 (mm) 0.14 (in) 3.56 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.73 (in) 18.5 (mm) 0.13 (in) 3.3 (mm) 15.98 (in) 405.9 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)

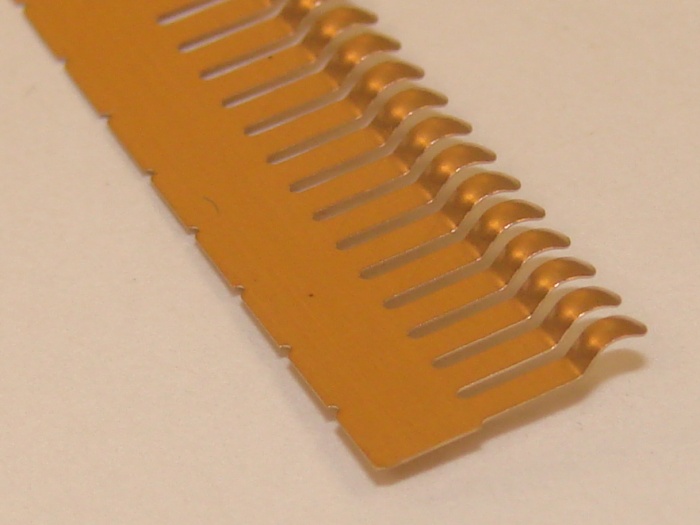

099-623-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
256 0.36 (in) 9.1 (mm) 0.02 (in) 0.5 (mm) 0.03 (in) 0.8 (mm) 0.0625 (in) 1.6 (mm) 0.02 (in) 0.51 (mm) 0.043 (in) 1.09 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.34 (in) 8.6 (mm) 0.04 (in) 1 (mm) 16 (in) 406.4 (mm) 0.004 (in) 0.102 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-623-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
256 0.36 (in) 9.1 (mm) 0.02 (in) 0.5 (mm) 0.03 (in) 0.8 (mm) 0.0625 (in) 1.6 (mm) 0.02 (in) 0.51 (mm) 0.043 (in) 1.09 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.34 (in) 8.6 (mm) 0.04 (in) 1 (mm) 16 (in) 406.4 (mm) 0.004 (in) 0.102 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-634-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
214 0.55 (in) 14 (mm) 0.02 (in) 0.5 (mm) 0.04 (in) 1 (mm) 0.075 (in) 1.91 (mm) 0.025 (in) 0.64 (mm) 0.05 (in) 1.27 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.53 (in) 13.5 (mm) 0.05 (in) 1.3 (mm) 16.05 (in) 407.7 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-634-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
214 0.55 (in) 14 (mm) 0.02 (in) 0.5 (mm) 0.04 (in) 1 (mm) 0.075 (in) 1.91 (mm) 0.025 (in) 0.64 (mm) 0.05 (in) 1.27 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.53 (in) 13.5 (mm) 0.05 (in) 1.3 (mm) 16.05 (in) 407.7 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-636-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
214 0.4 (in) 10.2 (mm) 0.02 (in) 0.5 (mm) 0.04 (in) 1 (mm) 0.075 (in) 1.91 (mm) 0.025 (in) 0.64 (mm) 0.05 (in) 1.27 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.38 (in) 9.7 (mm) 0.05 (in) 1.3 (mm) 16.05 (in) 407.7 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-637-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.8 (in) 20.3 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.78 (in) 19.8 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.01 (in) 0.254 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-637-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.8 (in) 20.3 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.78 (in) 19.8 (mm) 0.1 (in) 2.5 (mm) 15.98 (in) 405.9 (mm) 0.01 (in) 0.254 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)

spherical u contact Series

099-180-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
256 0.21 (in) 5.3 (mm) 0.04 (in) 1 (mm) 0.07 (in) 1.8 (mm) 0.0625 (in) 1.59 (mm) 0.02 (in) 0.51 (mm) 0.043 (in) 1.08 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.19 (in) 4.8 (mm) 0.09 (in) 2.3 (mm) 16 (in) 406.4 (mm) 0.004 (in) 0.102 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-180-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
256 0.21 (in) 5.3 (mm) 0.04 (in) 1 (mm) 0.07 (in) 1.8 (mm) 0.0625 (in) 1.59 (mm) 0.02 (in) 0.51 (mm) 0.043 (in) 1.08 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.19 (in) 4.8 (mm) 0.09 (in) 2.3 (mm) 16 (in) 406.4 (mm) 0.004 (in) 0.102 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-190-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
256 0.21 (in) 5.3 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.0625 (in) 1.59 (mm) 0.02 (in) 0.51 (mm) 0.043 (in) 1.08 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.19 (in) 4.8 (mm) 0.11 (in) 2.8 (mm) 16 (in) 406.4 (mm) 0.004 (in) 0.102 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-190-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
256 0.21 (in) 5.3 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.0625 (in) 1.59 (mm) 0.02 (in) 0.51 (mm) 0.043 (in) 1.08 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.19 (in) 4.8 (mm) 0.11 (in) 2.8 (mm) 16 (in) 406.4 (mm) 0.004 (in) 0.102 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-128-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.46 (in) 11.7 (mm) 0.1 (in) 2.5 (mm) 0.15 (in) 3.8 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.44 (in) 11.2 (mm) 0.2 (in) 5.1 (mm) 15.98 (in) 405.9 (mm) 0.008 (in) 0.203 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-128-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.46 (in) 11.7 (mm) 0.1 (in) 2.5 (mm) 0.15 (in) 3.8 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.44 (in) 11.2 (mm) 0.2 (in) 5.1 (mm) 15.98 (in) 405.9 (mm) 0.008 (in) 0.203 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-129-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.46 (in) 11.7 (mm) 0.1 (in) 2.5 (mm) 0.15 (in) 3.8 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.44 (in) 11.2 (mm) 0.2 (in) 5.1 (mm) 15.98 (in) 405.9 (mm) 0.01 (in) 0.254 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-129-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.46 (in) 11.7 (mm) 0.1 (in) 2.5 (mm) 0.15 (in) 3.8 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.44 (in) 11.2 (mm) 0.2 (in) 5.1 (mm) 15.98 (in) 405.9 (mm) 0.01 (in) 0.254 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-138-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.46 (in) 11.7 (mm) 0.08 (in) 2 (mm) 0.12 (in) 3 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.44 (in) 11.2 (mm) 0.16 (in) 4.1 (mm) 15.98 (in) 405.9 (mm) 0.008 (in) 0.203 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-138-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.46 (in) 11.7 (mm) 0.08 (in) 2 (mm) 0.12 (in) 3 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.44 (in) 11.2 (mm) 0.16 (in) 4.1 (mm) 15.98 (in) 405.9 (mm) 0.008 (in) 0.203 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-139-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.46 (in) 11.7 (mm) 0.08 (in) 2 (mm) 0.12 (in) 3 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.44 (in) 11.2 (mm) 0.16 (in) 4.1 (mm) 15.98 (in) 405.9 (mm) 0.01 (in) 0.254 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-139-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.46 (in) 11.7 (mm) 0.08 (in) 2 (mm) 0.12 (in) 3 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.44 (in) 11.2 (mm) 0.16 (in) 4.1 (mm) 15.98 (in) 405.9 (mm) 0.01 (in) 0.254 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)

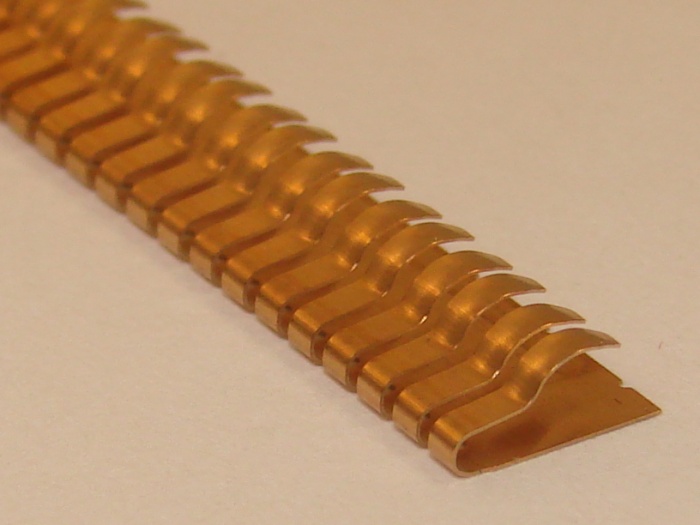

099-160-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
214 0.29 (in) 7.4 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.075 (in) 1.91 (mm) 0.025 (in) 0.64 (mm) 0.05 (in) 1.27 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.27 (in) 6.9 (mm) 0.11 (in) 2.8 (mm) 16.05 (in) 407.7 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-160-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
214 0.29 (in) 7.4 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.075 (in) 1.91 (mm) 0.025 (in) 0.64 (mm) 0.05 (in) 1.27 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.27 (in) 6.9 (mm) 0.11 (in) 2.8 (mm) 16.05 (in) 407.7 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-170-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
214 0.29 (in) 7.4 (mm) 0.08 (in) 2 (mm) 0.12 (in) 3 (mm) 0.075 (in) 1.91 (mm) 0.025 (in) 0.64 (mm) 0.05 (in) 1.27 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.27 (in) 6.9 (mm) 0.16 (in) 4.1 (mm) 16.05 (in) 407.7 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-170-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
214 0.29 (in) 7.4 (mm) 0.08 (in) 2 (mm) 0.12 (in) 3 (mm) 0.075 (in) 1.91 (mm) 0.025 (in) 0.64 (mm) 0.05 (in) 1.27 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.27 (in) 6.9 (mm) 0.16 (in) 4.1 (mm) 16.05 (in) 407.7 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)

u contact Series

099-110-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.5 (in) 12.7 (mm) 0.14 (in) 3.6 (mm) 0.21 (in) 5.3 (mm) 0.188 (in) 4.78 (mm) 0.064 (in) 1.63 (mm) 0.124 (in) 3.15 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.48 (in) 12.2 (mm) 0.28 (in) 7.1 (mm) 15.98 (in) 405.9 (mm) 0.006 (in) 0.152 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-110-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.5 (in) 12.7 (mm) 0.14 (in) 3.6 (mm) 0.21 (in) 5.3 (mm) 0.188 (in) 4.78 (mm) 0.064 (in) 1.63 (mm) 0.124 (in) 3.15 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.48 (in) 12.2 (mm) 0.28 (in) 7.1 (mm) 15.98 (in) 405.9 (mm) 0.006 (in) 0.152 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-140-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
192 0.15 (in) 3.8 (mm) 0.03 (in) 0.8 (mm) 0.05 (in) 1.3 (mm) 0.0625 (in) 1.59 (mm) 0.02 (in) 0.51 (mm) 0.043 (in) 1.08 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.13 (in) 3.3 (mm) 0.07 (in) 1.8 (mm) 12 (in) 304.8 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-140-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
192 0.15 (in) 3.8 (mm) 0.03 (in) 0.8 (mm) 0.05 (in) 1.3 (mm) 0.0625 (in) 1.59 (mm) 0.02 (in) 0.51 (mm) 0.043 (in) 1.08 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.13 (in) 3.3 (mm) 0.07 (in) 1.8 (mm) 12 (in) 304.8 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-145-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
192 0.15 (in) 3.8 (mm) 0.05 (in) 1.3 (mm) 0.07 (in) 1.8 (mm) 0.0625 (in) 1.59 (mm) 0.02 (in) 0.51 (mm) 0.043 (in) 1.08 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.13 (in) 3.3 (mm) 0.09 (in) 2.3 (mm) 12 (in) 304.8 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-145-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
192 0.15 (in) 3.8 (mm) 0.05 (in) 1.3 (mm) 0.07 (in) 1.8 (mm) 0.0625 (in) 1.59 (mm) 0.02 (in) 0.51 (mm) 0.043 (in) 1.08 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.13 (in) 3.3 (mm) 0.09 (in) 2.3 (mm) 12 (in) 304.8 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-150-CT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
96 0.15 (in) 3.8 (mm) 0.05 (in) 1.3 (mm) 0.07 (in) 1.8 (mm) 0.125 (in) 3.18 (mm) 0.02 (in) 0.51 (mm) 0.105 (in) 2.67 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.13 (in) 3.3 (mm) 0.09 (in) 2.3 (mm) 12 (in) 304.8 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-150-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
96 0.15 (in) 3.8 (mm) 0.05 (in) 1.3 (mm) 0.07 (in) 1.8 (mm) 0.125 (in) 3.18 (mm) 0.02 (in) 0.51 (mm) 0.105 (in) 2.67 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.13 (in) 3.3 (mm) 0.09 (in) 2.3 (mm) 12 (in) 304.8 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)

contact ring Series

female contact ring Series

099-504-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
192 0.15 (in) 3.8 (mm) 0.03 (in) 0.8 (mm) 0.05 (in) 1.3 (mm) 0.0625 (in) 1.59 (mm) 0.02 (in) 0.51 (mm) 0.043 (in) 1.08 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.13 (in) 3.3 (mm) 0.07 (in) 1.8 (mm) 0.44 (in) 11.2 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-505-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
96 0.15 (in) 3.8 (mm) 0.05 (in) 1.3 (mm) 0.07 (in) 1.8 (mm) 0.125 (in) 3.18 (mm) 0.02 (in) 0.51 (mm) 0.105 (in) 2.67 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.13 (in) 3.3 (mm) 0.09 (in) 2.3 (mm) 1.12 (in) 28.4 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-506-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
214 0.29 (in) 7.4 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.075 (in) 1.91 (mm) 0.025 (in) 0.64 (mm) 0.05 (in) 1.27 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.27 (in) 6.9 (mm) 0.11 (in) 2.8 (mm) 0.65 (in) 16.5 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-507-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
214 0.29 (in) 7.4 (mm) 0.08 (in) 2 (mm) 0.12 (in) 3 (mm) 0.075 (in) 1.91 (mm) 0.025 (in) 0.64 (mm) 0.05 (in) 1.27 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.27 (in) 6.9 (mm) 0.16 (in) 4.1 (mm) 0.96 (in) 24.4 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-508-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
256 0.21 (in) 5.3 (mm) 0.04 (in) 1 (mm) 0.07 (in) 1.8 (mm) 0.0625 (in) 1.59 (mm) 0.02 (in) 0.51 (mm) 0.043 (in) 1.09 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.19 (in) 4.8 (mm) 0.09 (in) 2.3 (mm) 0.54 (in) 13.7 (mm) 0.004 (in) 0.102 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-509-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
256 0.21 (in) 5.3 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.0625 (in) 1.59 (mm) 0.02 (in) 0.51 (mm) 0.043 (in) 1.09 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.19 (in) 4.8 (mm) 0.11 (in) 2.8 (mm) 0.65 (in) 16.5 (mm) 0.004 (in) 0.102 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-532-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
256 0.36 (in) 9.1 (mm) 0.02 (in) 0.5 (mm) 0.03 (in) 0.8 (mm) 0.0625 (in) 1.6 (mm) 0.02 (in) 0.51 (mm) 0.043 (in) 1.09 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.34 (in) 8.6 (mm) 0.04 (in) 1 (mm) 0.24 (in) 6.1 (mm) 0.004 (in) 0.102 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-543-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
214 0.55 (in) 14 (mm) 0.02 (in) 0.5 (mm) 0.04 (in) 1 (mm) 0.075 (in) 1.91 (mm) 0.025 (in) 0.64 (mm) 0.05 (in) 1.27 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.53 (in) 13.5 (mm) 0.05 (in) 1.3 (mm) 0.3 (in) 7.6 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-563-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
214 0.4 (in) 10.2 (mm) 0.02 (in) 0.5 (mm) 0.04 (in) 1 (mm) 0.075 (in) 1.91 (mm) 0.025 (in) 0.64 (mm) 0.05 (in) 1.27 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.38 (in) 9.7 (mm) 0.05 (in) 1.3 (mm) 0.3 (in) 7.6 (mm) 0.005 (in) 0.127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-573-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.8 (in) 20.3 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.78 (in) 19.8 (mm) 0.1 (in) 2.5 (mm) 0.58 (in) 14.7 (mm) 0.01 (in) 0.254 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-582-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.46 (in) 11.7 (mm) 0.1 (in) 2.5 (mm) 0.15 (in) 3.8 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.44 (in) 11.2 (mm) 0.2 (in) 5.1 (mm) 1.18 (in) 30 (mm) 0.008 (in) 0.203 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-583-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.46 (in) 11.7 (mm) 0.08 (in) 2 (mm) 0.12 (in) 3 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.44 (in) 11.2 (mm) 0.16 (in) 4.1 (mm) 0.94 (in) 23.9 (mm) 0.008 (in) 0.203 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-592-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.46 (in) 11.7 (mm) 0.1 (in) 2.5 (mm) 0.15 (in) 3.8 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.44 (in) 11.2 (mm) 0.2 (in) 5.1 (mm) 1.18 (in) 30 (mm) 0.01 (in) 0.254 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-593-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.46 (in) 11.7 (mm) 0.08 (in) 2 (mm) 0.12 (in) 3 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.44 (in) 11.2 (mm) 0.16 (in) 4.1 (mm) 0.94 (in) 23.9 (mm) 0.01 (in) 0.254 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)

male contact ring Series

099-523-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
256 0.36 (in) 9.1 (mm) 0.02 (in) 0.5 (mm) 0.03 (in) 0.8 (mm) 0.063 (in) 1.6 (mm) 0.02 (in) 0.51 (mm) 0.043 (in) 1.09 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.34 (in) 8.6 (mm) 0.04 (in) 1 (mm) >0.38 (in) >9.7 (mm) 0.004 (in) 0.102 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-528-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.46 (in) 11.7 (mm) 0.1 (in) 2.5 (mm) 0.15 (in) 3.8 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.44 (in) 11.2 (mm) 0.2 (in) 5.1 (mm) >0.38 (in) >9.7 (mm) 0.008 (in) 0.203 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-529-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.46 (in) 11.7 (mm) 0.1 (in) 2.5 (mm) 0.15 (in) 3.8 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.44 (in) 11.2 (mm) 0.2 (in) 5.1 (mm) >0.38 (in) >9.7 (mm) 0.01 (in) 0,254 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-534-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
214 0.55 (in) 14 (mm) 0.02 (in) 0.3 (mm) 0.04 (in) 1 (mm) 0.075 (in) 1.91 (mm) 0.025 (in) 0.64 (mm) 0.05 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.53 (in) 13.5 (mm) 0.05 (in) 1.3 (mm) >0.38 (in) >9.7 (mm) 0.005 (in) 0,127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-536-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
214 0.4 (in) 10.2 (mm) 0.02 (in) 0.5 (mm) 0.04 (in) 1 (mm) 0.075 (in) 1.91 (mm) 0.025 (in) 0.64 (mm) 0.05 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.38 (in) 9.7 (mm) 0.05 (in) 1.3 (mm) >0.38 (in) >9.7 (mm) 0.005 (in) 0,127 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-537-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.8 (in) 20.3 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.78 (in) 19.8 (mm) 0.1 (in) 2.5 (mm) >0.38 (in) >9.7 (mm) 0.01 (in) 0,254 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-538-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.46 (in) 11.7 (mm) 0.08 (in) 2 (mm) 0.12 (in) 3 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.44 (in) 11.2 (mm) 0.16 (in) 4.1 (mm) >0.38 (in) >9.7 (mm) 0.008 (in) 0.203 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-539-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
170 0.46 (in) 11.7 (mm) 0.08 (in) 2 (mm) 0.12 (in) 3 (mm) 0.094 (in) 2.39 (mm) 0.032 (in) 0.81 (mm) 0.062 (in) 1.57 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.44 (in) 11.2 (mm) 0.16 (in) 4.1 (mm) >0.38 (in) >9.7 (mm) 0.01 (in) 0.254 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)

fold over Series

enclosed fold over Series

099-701-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.78 (in) 19.8 (mm) 0.06 (in) 1.5 (mm) 0.17 (in) 4.3 (mm) 0.375 (in) 9.53 (mm) 0.032 (in) 0.81 (mm) 0.343 (in) 8.71 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.76 (in) 19.3 (mm) 0.23 (in) 5.8 (mm) 24 (in) 609.6 (mm) 0.0038 (in) 0.097 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-701-WT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.78 (in) 19.8 (mm) 0.06 (in) 1.5 (mm) 0.17 (in) 4.3 (mm) 0.375 (in) 9.53 (mm) 0.032 (in) 0.81 (mm) 0.343 (in) 8.71 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.76 (in) 19.3 (mm) 0.23 (in) 5.8 (mm) 24 (in) 609.6 (mm) 0.0038 (in) 0.097 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-721-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.53 (in) 13.5 (mm) 0.07 (in) 1.8 (mm) 0.11 (in) 2.8 (mm) 0.25 (in) 6.35 (mm) 0.022 (in) 0.56 (mm) 0.228 (in) 5.79 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.51 (in) 13 (mm) 0.15 (in) 3.8 (mm) 16 (in) 406.4 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-721-WT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.53 (in) 13.5 (mm) 0.07 (in) 1.8 (mm) 0.11 (in) 2.8 (mm) 0.25 (in) 6.35 (mm) 0.022 (in) 0.56 (mm) 0.228 (in) 5.79 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.51 (in) 13 (mm) 0.15 (in) 3.8 (mm) 16 (in) 406.4 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-741-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.39 (in) 9.9 (mm) 0.06 (in) 1.5 (mm) 0.09 (in) 2.3 (mm) 0.188 (in) 4.78 (mm) 0.018 (in) 0.46 (mm) 0.17 (in) 4.32 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.38 (in) 9.7 (mm) 0.12 (in) 3 (mm) 15.98 (in) 405.9 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-741-WT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.39 (in) 9.9 (mm) 0.06 (in) 1.5 (mm) 0.09 (in) 2.3 (mm) 0.188 (in) 4.78 (mm) 0.018 (in) 0.46 (mm) 0.17 (in) 4.32 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.38 (in) 9.7 (mm) 0.12 (in) 3 (mm) 15.98 (in) 405.9 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-761-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
86 0.27 (in) 6.9 (mm) 0.04 (in) 1 (mm) 0.07 (in) 1.8 (mm) 0.188 (in) 4.76 (mm) 0.018 (in) 0.46 (mm) 0.17 (in) 4.3 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.25 (in) 6.4 (mm) 0.09 (in) 2.3 (mm) 16.13 (in) 409.7 (mm) 0.0025 (in) 0.064 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-761-WT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
86 0.27 (in) 6.9 (mm) 0.04 (in) 1 (mm) 0.07 (in) 1.8 (mm) 0.188 (in) 4.76 (mm) 0.018 (in) 0.46 (mm) 0.17 (in) 4.3 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.25 (in) 6.4 (mm) 0.09 (in) 2.3 (mm) 16.13 (in) 409.7 (mm) 0.0025 (in) 0.064 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
098-761-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.27 (in) 6.9 (mm) 0.04 (in) 1 (mm) 0.07 (in) 1.8 (mm) 0.188 (in) 4.76 (mm) 0.018 (in) 0.46 (mm) 0.17 (in) 4.3 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.25 (in) 6.4 (mm) 0.09 (in) 2.3 (mm) 16.13 (in) 409.7 (mm) 0.0022 (in) 0.056 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
098-761-WT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
86 0.27 (in) 6.9 (mm) 0.04 (in) 1 (mm) 0.07 (in) 1.8 (mm) 0.188 (in) 4.76 (mm) 0.018 (in) 0.46 (mm) 0.17 (in) 4.3 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.25 (in) 6.4 (mm) 0.09 (in) 2.3 (mm) 16.13 (in) 409.7 (mm) 0.0022 (in) 0.056 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)

fold over clip on Series

099-702-07
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.82 (in) 20.8 (mm) 0.06 (in) 1.5 (mm) 0.17 (in) 4.3 (mm) 0.375 (in) 9.53 (mm) 0.032 (in) 0.81 (mm) 0.343 (in) 8.71 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"V" Style (every finger / 64 per strip) 0.8 (in) 20.3 (mm) 0.23 (in) 5.8 (mm) 24 (in) 609.6 (mm) 0.0038 (in) 0,097 (mm) n/a (in) n/a (mm) 0.07 (in) 1.8 (mm) 0.035-0.065 (in) 0.89-1.65 (mm)
099-722-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.62 (in) 15.7 (mm) 0.06 (in) 1.5 (mm) 0.11 (in) 2.8 (mm) 0.25 (in) 6.35 (mm) 0.022 (in) 0.56 (mm) 0.228 (in) 5.79 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"V" Style (every finger / 64 per strip) 0.6 (in) 15.2 (mm) 0.15 (in) 3.8 (mm) 16 (in) 406.4 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)

fold over sub Series

099-700-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.78 (in) 19.8 (mm) 0.06 (in) 1.5 (mm) 0.17 (in) 4.3 (mm) 0.375 (in) 9.53 (mm) 0.032 (in) 0.81 (mm) 0.343 (in) 8.71 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.6 (in) 15.2 (mm) 0.23 (in) 5.8 (mm) 24 (in) 609.6 (mm) 0.0038 (in) 0.097 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-700-WT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.78 (in) 19.8 (mm) 0.06 (in) 1.5 (mm) 0.17 (in) 4.3 (mm) 0.375 (in) 9.53 (mm) 0.032 (in) 0.81 (mm) 0.343 (in) 8.71 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.6 (in) 15.2 (mm) 0.23 (in) 5.8 (mm) 24 (in) 609.6 (mm) 0.0038 (in) 0.097 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-720-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.53 (in) 13.5 (mm) 0.06 (in) 1.5 (mm) 0.11 (in) 2.8 (mm) 0.25 (in) 6.35 (mm) 0.022 (in) 0.56 (mm) 0.228 (in) 5.79 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.38 (in) 9.7 (mm) 0.14 (in) 3.6 (mm) 16 (in) 406.4 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-720-WT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.53 (in) 13.5 (mm) 0.06 (in) 1.5 (mm) 0.11 (in) 2.8 (mm) 0.25 (in) 6.35 (mm) 0.022 (in) 0.56 (mm) 0.228 (in) 5.79 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.38 (in) 9.7 (mm) 0.14 (in) 3.6 (mm) 16 (in) 406.4 (mm) 0.003 (in) 0.076 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-738-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.95 (in) 24.1 (mm) 0.06 (in) 1.5 (mm) 0.2 (in) 5.1 (mm) 0.375 (in) 9.53 (mm) 0.04 (in) 1.02 (mm) 0.335 (in) 8.51 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.76 (in) 19.3 (mm) 0.26 (in) 6.6 (mm) 24 (in) 609.6 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-738-WT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
64 0.95 (in) 24.1 (mm) 0.06 (in) 1.5 (mm) 0.2 (in) 5.1 (mm) 0.375 (in) 9.53 (mm) 0.04 (in) 1.02 (mm) 0.335 (in) 8.51 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.76 (in) 19.3 (mm) 0.26 (in) 6.6 (mm) 24 (in) 609.6 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-740-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.39 (in) 9.9 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.78 (mm) 0.018 (in) 0.46 (mm) 0.17 (in) 4.32 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.28 (in) 7.1 (mm) 0.11 (in) 2.8 (mm) 15.98 (in) 405.9 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-740-WT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
85 0.39 (in) 9.9 (mm) 0.05 (in) 1.3 (mm) 0.08 (in) 2 (mm) 0.188 (in) 4.78 (mm) 0.018 (in) 0.46 (mm) 0.17 (in) 4.32 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.28 (in) 7.1 (mm) 0.11 (in) 2.8 (mm) 15.98 (in) 405.9 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)

hi deflection Series

hi deflection clip on Series

099-840-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
43 1.28 (in) 32.5 (mm) 0.06 (in) 1.5 (mm) 0.2 (in) 5.1 (mm) 0.375 (in) 9.53 (mm) 0.04 (in) 1.02 (mm) 0.335 (in) 8.51 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 1.1 (in) 27.9 (mm) 0.26 (in) 6.6 (mm) 16.13 (in) 409.6 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-840-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
43 1.28 (in) 32.5 (mm) 0.06 (in) 1.5 (mm) 0.2 (in) 5.1 (mm) 0.375 (in) 9.53 (mm) 0.04 (in) 1.02 (mm) 0.335 (in) 8.51 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 1.1 (in) 27.9 (mm) 0.26 (in) 6.6 (mm) 16.13 (in) 409.6 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-840-12
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
43 1.28 (in) 32.5 (mm) 0.06 (in) 1.5 (mm) 0.2 (in) 5.1 (mm) 0.375 (in) 9.53 (mm) 0.04 (in) 1.02 (mm) 0.335 (in) 8.51 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 1.1 (in) 27.9 (mm) 0.26 (in) 6.6 (mm) 16.13 (in) 409.6 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.12 (in) 3 (mm) 0.075-0.115 (in) 1.91-2.92 (mm)
099-841-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
43 1.28 (in) 32.5 (mm) 0.06 (in) 1.5 (mm) 0.2 (in) 5.1 (mm) 0.375 (in) 9.53 (mm) 0.04 (in) 1.02 (mm) 0.335 (in) 8.51 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 2 fingers (22 per strip) 1.1 (in) 27.9 (mm) 0.26 (in) 6.6 (mm) 16.13 (in) 409.6 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-841-08
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
43 1.28 (in) 32.5 (mm) 0.06 (in) 1.5 (mm) 0.2 (in) 5.1 (mm) 0.375 (in) 9.53 (mm) 0.04 (in) 1.02 (mm) 0.335 (in) 8.51 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"C\" Style (every 2 fingers / 22 per strip) 1.1 (in) 27.9 (mm) 0.26 (in) 6.6 (mm) 16.13 (in) 409.6 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.08 (in) 2 (mm) 0.055-0.075 (in) 1.40-1.91 (mm)
099-841-12
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
43 1.28 (in) 32.5 (mm) 0.06 (in) 1.5 (mm) 0.2 (in) 5.1 (mm) 0.375 (in) 9.53 (mm) 0.04 (in) 1.02 (mm) 0.335 (in) 8.51 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
\"C\" Style (every 2 fingers / 22 per strip) 1.1 (in) 27.9 (mm) 0.26 (in) 6.6 (mm) 16.13 (in) 409.6 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) 0.12 (in) 3 (mm) 0.075-0.115 (in) 1.91-2.92 (mm)

hi deflection right angle Series

099-320-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
32 1.14 (in) 29 (mm) 0.06 (in) 1.5 (mm) 0.19 (in) 4.8 (mm) 0.375 (in) 9.53 (mm) 0.04 (in) 1.02 (mm) 0.335 (in) 8.51 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 1.12 (in) 27.9 (mm) 0.26 (in) 6.6 (mm) 12 (in) 304.8 (mm) 0.0045 (in) 0.114 (mm) 0.19 (in) 4.8 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-330-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
32 1.52 (in) 38.6 (mm) 0.06 (in) 1.5 (mm) 0.19 (in) 4.8 (mm) 0.375 (in) 9.53 (mm) 0.04 (in) 1.02 (mm) 0.335 (in) 8.51 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 1.5 (in) 38.1 (mm) 0.26 (in) 6.6 (mm) 12 (in) 304.8 (mm) 0.0045 (in) 0.114 (mm) 0.19 (in) 4.8 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-300-NT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
32 0.95 (in) 24.1 (mm) 0.06 (in) 1.5 (mm) 0.19 (in) 4.8 (mm) 0.375 (in) 9.53 (mm) 0.04 (in) 1.02 (mm) 0.335 (in) 8.51 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.83 (in) 21.3 (mm) 0.25 (in) 6.4 (mm) 12 (in) 304.8 (mm) 0.0045 (in) 0.114 (mm) 0.73 (in) 18.5 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)
099-300-WT
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
32 0.95 (in) 24.1 (mm) 0.06 (in) 1.5 (mm) 0.19 (in) 4.8 (mm) 0.375 (in) 9.53 (mm) 0.04 (in) 1.02 (mm) 0.335 (in) 8.51 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.83 (in) 21.3 (mm) 0.26 (in) 6.6 (mm) 12 (in) 304.8 (mm) 0.0045 (in) 0.114 (mm) 0.73 (in) 18.5 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)

hi deflection sub Series

099-400-00
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
800 1.12 (in) 28.4 (mm) 0.06 (in) 1.5 (mm) 0.19 (in) 4.8 (mm) 0.375 (in) 9.53 (mm) 0.04 (in) 1.02 (mm) 0.335 (in) 8.51 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 1.1 (in) 27.9 (mm) 0.26 (in) 6.6 (mm) 300 (in) 7620 (mm) 0.0045 (in) 0.114 (mm) n/a (in) n/a (mm) n/a (in) n/a (mm) n/a (in) n/a (mm)

no snag Series

No Snag Installation Guide Series

no snag clip on Series

099-936-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
96 0.48 (in) 12.2 (mm) 0.06 (in) 1.5 (mm) 0.09 (in) 2.3 (mm) 0.375 (in) 4.763 (mm) 0.02 (in) 0.51 (mm) 0.1675 (in) 4.255 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
"C" Style (every 2 fingers / 48 per strip) 0.46 (in) 11.7 (mm) 0.12 (in) 3 (mm) 18 (in) 457.2 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.06 (in) 1.5 (mm) 0.035-0.055 (in) 0.89-1.40 (mm)
099-945-04
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
72 0.48 (in) 12.2 (mm) 0.06 (in) 1.5 (mm) 0.09 (in) 2.3 (mm) 0.50 (in) 6.35 (mm) 0.02 (in) 0.51 (mm) 0.23 (in) 5.84 (mm) n/a
Lance Width Offset Length Thickness Flat Section Clip-On Min Mount Thickness
n/a 0.46 (in) 11.7 (mm) 0.12 (in) 3 (mm) 18 (in) 457.2 (mm) 0.0027 (in) 0.069 (mm) n/a (in) n/a (mm) 0.04 (in) 1 (mm) 0.020-0.035 (in) 0.51-0.89 (mm)
099-945-06
Num Fingers Min Mount Min Gap Max Gap Pitch Slot Finger Trimmed Finger Tips
72 0.48 (in) 12.2 (mm) 0.06 (in) 1.5 (mm) 0.09 (in) 2.3 (mm) 0.50 (in) 6.35 (mm) 0.02 (in) 0.51 (mm) 0.23 (in) 5.84 (mm) n/a
Lance Width
