Product Highlights: Clip-On Series - P/N: 099-440-07-20

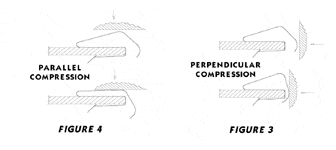

The unique design of this part provides a lead for ease of mounting (see figure 2) and can be installed into two different types of applications. It can be used to clip onto one surface and make contact with a mating surface that is perpendicular to the mounting surface (see figure 3), or it can make contact with a mating surface that is parallel to the mounting surface (see figure 4). If required, one part can perform both applications at the same time (see figure 5), providing for design flexibility. This part provides a substantial dynamic range and requires minimal compression force in either direction (see figure 1). Retaining lances are provided to ensure secure mounting and integrity of desired position. For more information refer to page 11 of our catalog or call our sales department at 1-800-828-5784.

For more information about this or any other product, contact our Customer Service Department.

Find a Product

Inches Millimeters

Gap: The space between mounting and mating surfaces when in the compressed position.

Gap Size:

Mount Size: The amount of available space for mounting the part, including space for expansion of product when compressed.

Mount Size:

Mount Method: The desired method of attachment (i.e. clip-on, transfer adhesive, conductive transfer adhesive, solder, weld, or the use of hardware)

Mount Method: -- Mount Method --
