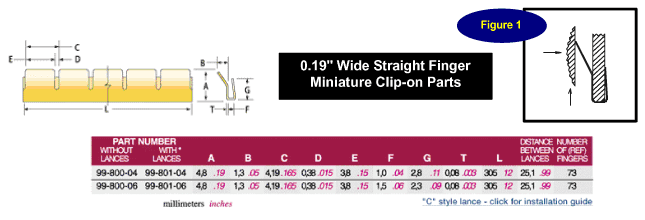

OMEGA SHIELDING PRODUCTS' Miniature Clip-on Series of parts are among the smallest clip-on strips, of this configuration, available today. They require very low compression force and exhibit virtually no compression set. The 99-800 and 99-801 series have straight fingers which, when compressed, provide a "biting" action for surfaces that require abrasion in order to achieve positive contact.

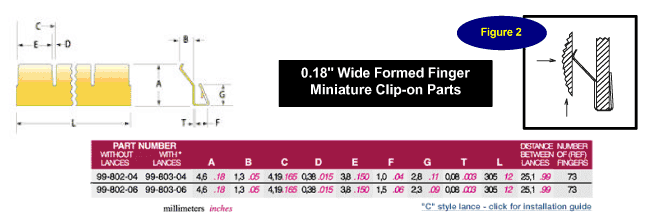

In contrast, the 99-802 and 99-803 series have fingers that are formed to facilitate a smooth engagement with the contact surface during compression. In either case, they are all ideal for applications where minimal mounting space is available. Compression forces should be applied in one of the directions as indicated by the arrows in figures 1 & 2. They are all available in a variety of surface finishes to accommodate metallurgical compatibility.
