No-Snag Installation Guide

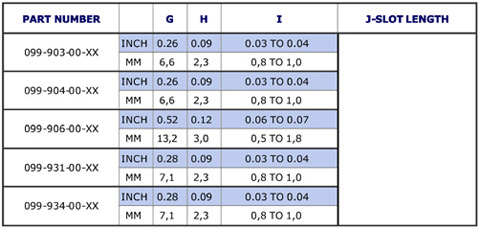

A typical slot-mount shielding application is shown below on an electric enclosure. Follow the dimensional specifications shown at left and in the chart below for the optimum installation performance.

Note: the "J-slot" length per application in multiples of "C" dimension plus .010" (0,25mm). See No-Snag Parts on the No-Snag Series Page.

Find a Product

Inches Millimeters

Gap: The space between mounting and mating surfaces when in the compressed position.

Gap Size:

Mount Size: The amount of available space for mounting the part, including space for expansion of product when compressed.

Mount Size:

Mount Method: The desired method of attachment (i.e. clip-on, transfer adhesive, conductive transfer adhesive, solder, weld, or the use of hardware)

Mount Method: -- Mount Method --
